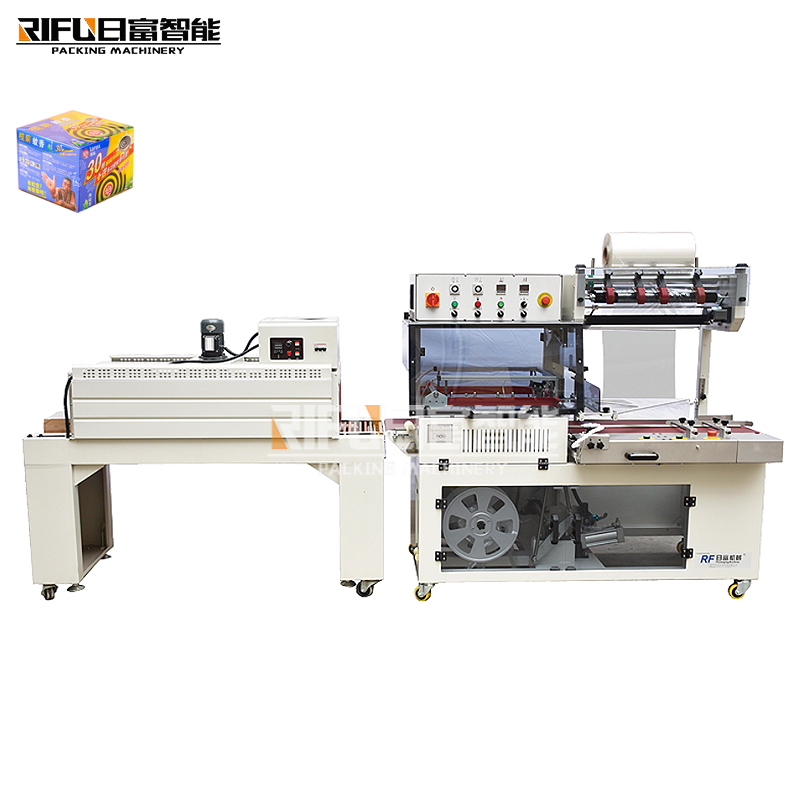

Automatic multifunctional cosmetic box sealing and cutting shrink film packaging machine

Automatic heat shrinking wrapping machine

Automatic sealing & heat shrinking packaging machine is a medium speed shrink machine according to the different demands from domestic and overseas markets. Widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.

Feature

1. The cutter adopts Teflon coating anti-adhesive and high-aluminum-bonded knife, the seal will not split, no coking,no smoke and zero pollution.

2. Equipped with imported detection optoelectronics and relays. (Using Omron optoelectronic).
3. Automatic feeding, the length is automatically adjusted by the delay switch.

4. Equipped with an induction motor to automatically take up scrap.

5. When the size of the package is changed, the adjustment is very simple, and there is no need to change the mold and the bag maker.

MODEL NO	RF-400LA+RF450C	RF-450C
MODEL	L Bar sealer	Shrink Tunnel
ELECTRICAL	380V/50-60Hz/3phase
POWER	1.5Kw	7Kw
AIR SUPPLY	0.5MPa (5 bar)	/
WORKING HEIGHT	780-850 mm
PACKING CAPACITY	20-35 Packs/Min
FILM MATERIAL	Center-folded polyolefin shrink (pof) film
SEALING SIZE	570x480mm	/
OVEN DEMENSION	/	1200(L)x450(W)x220(H) mm
SEALING HEIGHT	150mm	/
MAX FILM SIZE	530mm (Width) 280mm (Outer diameters)	/
MAX TEMPERATURE	300	230
SHRINK TUNNEL CONVEYOR	/	Rotating silicon coated rods
SHRINK TUNNEL CONVEYOR SPEED	/	Variable, max. 40 m/min
PACKING SIZE	1800(L) x 960(W) x 1550(H)mm (2.68cbm)	1800(L) x 810(W) x1400(H)mm (2.04cbm)
MACHINE WEIGHT	390 Kg	270 Kg

Guangdong Rifu Intelligent Equipment Co.,Ltd is an efficient and technology enterprise. Professional manufacturing filling machine, capping machine, labeling machine, filling sealing machine, vacuum packing machine, vertical packing machine, heat shrinking packingmachine, cellophane wrapping machine, etc. We have own excellent team and a high level of equipment manufacturing personnel. Dedicated to strict quality control and thoughtful customer service. Has many of the world's countries and regions to establish long-term and friendly business.
